Product : Tensile testing machine manufactrers and exporters in India

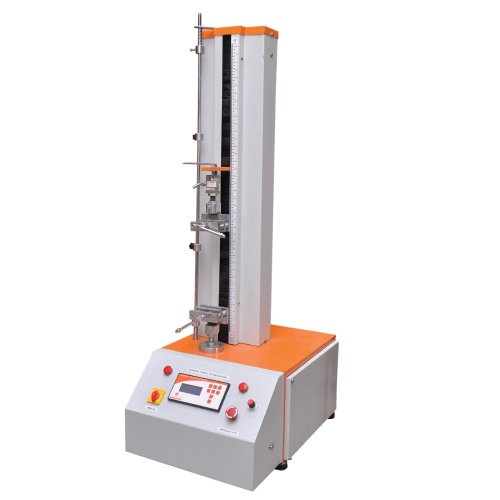

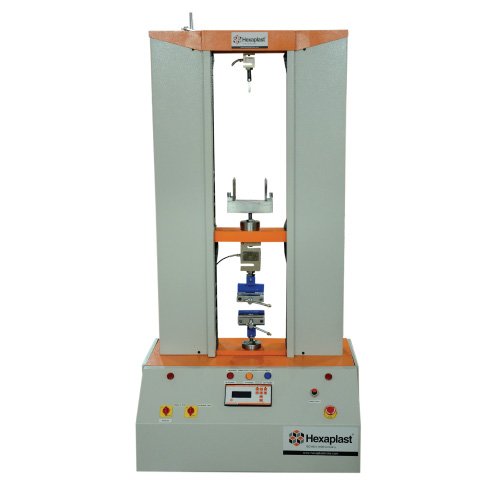

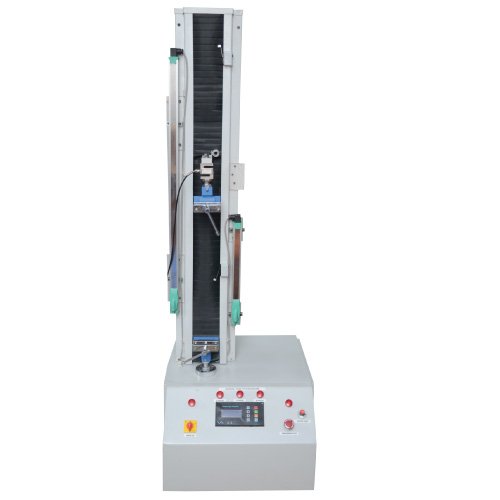

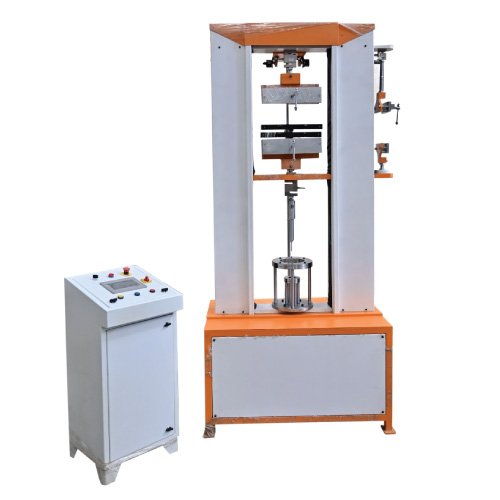

Tensile Testing Machine used to Measurement of material with standing force capacity by pull it apart and to determine to what extent the materials stretches before breaking.

The “Hexa Plast” UTM Gives Highly Accurate Result with Latest Technology and is available in So many Different Models For Testing a Different Materials. Load Measuring Sensor, Sample Holding Grips, Fixtures can be interchange smoothly and easily to perform various test like Compression, Flexural , Co-efficient of Friction, peel strength, bond strength.

Standards

All Is Standards , ASTM D 638, D 882, D 790 , D 695 , and BS 2782 or so many equivalent standards.

Application

Tensile Tester machines is the universal test applied to many polymers for check the mechanical properties & it is the most important property as majority of mechanical loading & properties like Tensile strength and modulus , elongation , compressive strength Etc. are calculate by using this machine.

Model No.

H-UTM-1

H-UTM-2

H-UTM-3

H-UTM-4

H-UTM-5

H-UTM-6

H-UTM-7

H-UTM-8

H-UTM-9

H-UTM-10

Load Capacity

100 K.g

250 k.g.

500 k.g.

1000 k.g.

2500 k.g.

5000 k.g.

7500 k.g.

10000 k.g.

20000 k.g.

40000 k.g.

Max. Cross Head Travel between to grips ( In MM)

1000  mm  & As Requi.

1000  mm  & As Requi.

1000  mm  & As Requir.

1000  mm  & As Requir

1000  mm  & As Requir.

1000  mm  & As Requir.

1000  mm  & As Requir

1000  mm  & As Requir

1000  mm  & As Requir

500  mm  & As Requir

Cross Head Travel  Speed (MM / Min.)

10-500 MM Per /Minute

10-500 MM Per /Minute

10-500 MM Per /Minute

10-500 MM Per /Minute

10-500 MM Per /Minute

10-500 MM Per /Minute

10-500 MM Per /Minute

10-500 MM Per /Minute

As per Require.

As per Require.

Speed Accuracy

< 0.2 %

< 0.2 %

< 0.2 %

< 0.2 %

< 0.2 %

< 0.2 %

< 0.2 %

< 0.2 %

< 0.2 %

< 0.2 %

Load Cell Unit.

Kg  OR N.

Kg  OR N.

Kg  OR N.

Kg  OR N.

Kg  OR N.

Kg  OR N.

Kg  OR N.

Kg  OR N.

Kg  OR N.

Kg  OR N.

Load Accuracy

< 0.5%

< 0.5%

< 0.5%

< 0.5%

< 0.5%

< 0.5%

< 0.5%

< 0.5%

< 0.5%

< 0.5%

Extension Resolution

0.1 mm OR 0.01 mm

0.1 mm OR 0.01 mm

0.1 mm OR 0.01 mm

0.1 mm OR 0.01 mm

0.1 mm OR 0.01 mm

0.1 mm OR 0.01 mm

0.1 mm OR 0.01 mm

0.1 mm OR 0.01 mm

0.1 mm OR 0.01 mm

0.1 mm OR 0.01 mm

Extensometer Input.

On Demand

On Demand

On Demand

On Demand

On Demand

On Demand

On Demand

On Demand

On Demand

On Demand

Power Supply.

230 v AC, 1 Phase , 50- HZ

230 v AC, 1 Phase , 50- HZ

230 v AC, 1 Phase , 50- HZ

415 v AC , 3 Phase , 50- HZ.

415 v AC , 3 Phase , 50- HZ.

415 v AC , 3 Phase , 50- HZ.

415 v AC , 3 Phase , 50- HZ.

415 v AC , 3 Phase , 50- HZ.

415 v AC , 3 Phase , 50- HZ.

415 v AC , 3 Phase , 50- HZ.
